ABout The Project
Steve from Thornleigh Golf Centre wanted to reduce his annual business costs and become a more sustainable business overall. The golf centre has a driving range, café and putt-putt, with several water features driven by large water pumps.

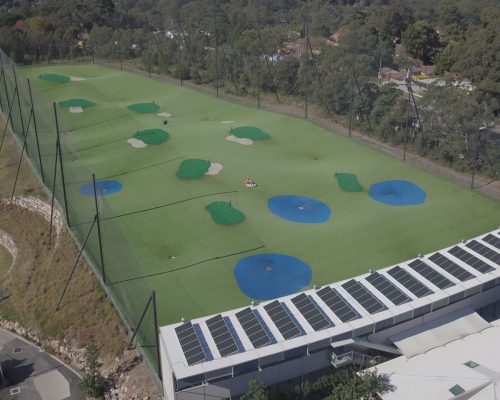

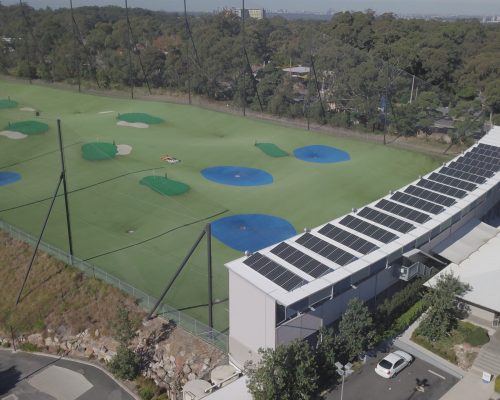

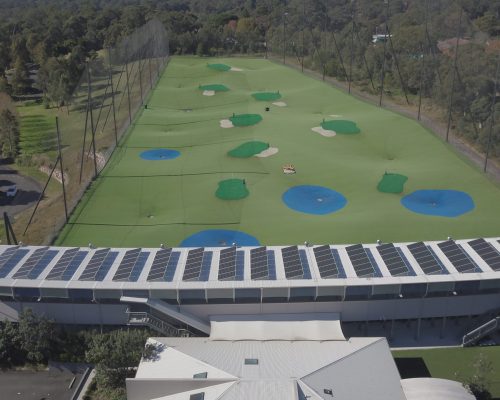

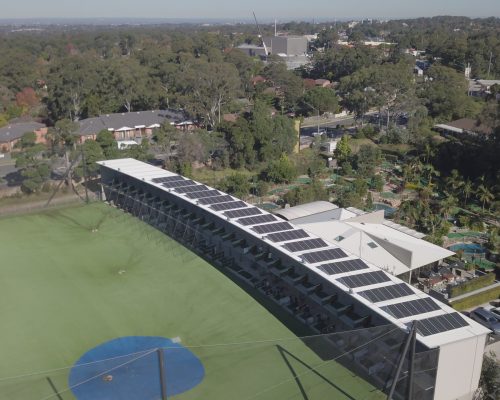

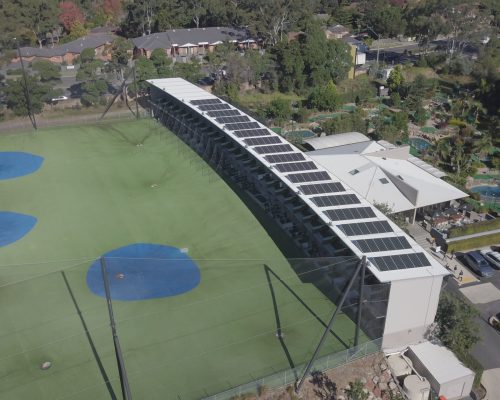

The centre had plenty of roof space for 102 x 340watt TrinaSmart north tilted panels that were combined with a Fronius ECO 27kW inverter giving the centre its base load power during sunlight hours.
SCE also installed Variable speed drives to the 4 x 4kw water feature pumps, allowing them to be slowed slightly and obtaining greater than 50% energy savings. Over a 24-hour period the VSD installation sees savings of 157kWh and over 55,000 kWh annually.
Project: Thornleigh Golf Centre
Installation date: June 2019
System type: 102 x 340watt TrinaSmart Modules, 1 x Fronius ECO 27kW Inverters
System size: 34.68kW
Location: Thornleigh, NSW
Rebate assistance: $19,550

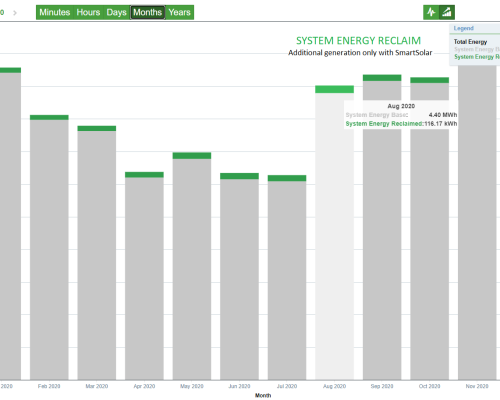

Annual Production: 57,311kWh per year and 157kWh per day
Annual CO2 saved: 46,995kgs per year and 129kg per day

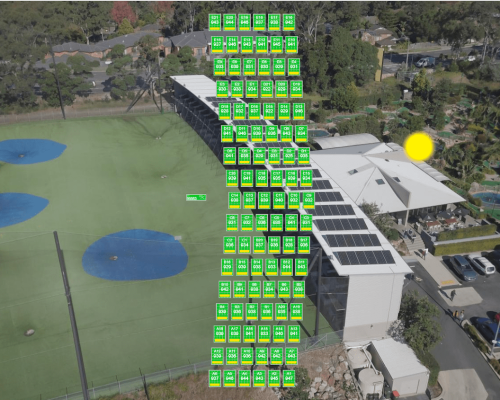

Safety: Tigo DC management system with full optimisation and Rapid Shutdown compliance.
